List Price : Price : $168.80
Product Description
Parameters
1. Power supply: DC12-13.8V Recommend 12V
2. Maximum operating current: 1A
3. Ambient temperature: -5~40?
4. Frequency Range: 76MHz~108MHz
5. Frequency Step : 100KHz
6. Frequency Stabilize Style: PLL
7. Pre-emphasize : Default 50µs Optional 75µs
8. Output power: from 0.1 to 1.2W Power adjustable
9. Output resistance: 50 OHM
10. Modulate Style: WFM
11. Maximum Deviation: ±75KHz
12. Parasitic AM: ?0.2%
13. Audio Frequency Response: 50Hz~15000Hz
14. Audio input level: -15dbV?Max: -30dbV?
15. Input Jack: 3.5mm headphone connector and RCA jack
16. MIC input Level: -15dbV?Max: -45dbV?
17. MIC Jack? 3.5mm headphone connector
18. Stereo Seperation? Better than 30db
19. S/N? Better than 50db
20. Antenna Connector? SMA type
21. Dimension? 98x140x50mm
22. Weight? 0.7Kg
ATTENTION Never power on the transmitter when the antenna is not connected!!!

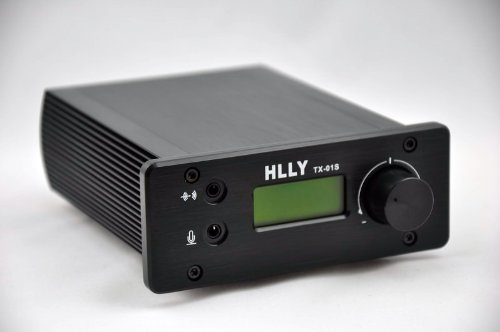

- TX-01S FM Transmitter
- Power supply
- Portable Antenna
- Audio cable
